NLE - Model 200 Standard Duty Conveyor

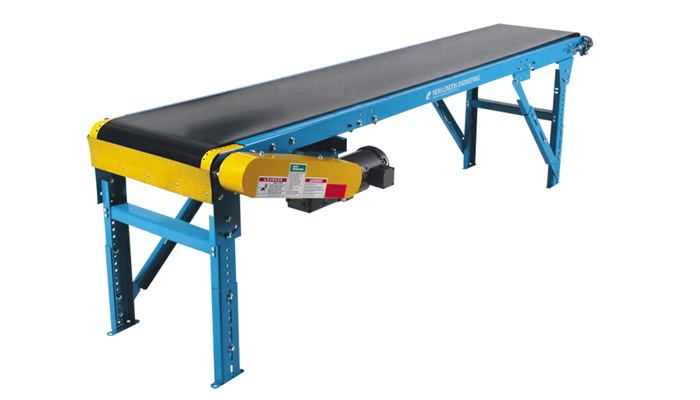

The New London Equipment Model 200 is an economical, shallow frame conveyor fits into tight spaces other slider beds can’t. It’s built for low-maintenance operation in shorter and narrower light-duty production and packaging operations.

Standard Specifications

• Widths: Up to 30″
• Lengths: 5’– 40′ (6″ Increments)
• Standard Length is 5′, Two Piece Bolt Together
• Standard Speed: 60 FPM
• Standard Motor: 1/3 HP 230/460/3/60 TEFC
• Standard Drive: Bottom Mount, Right Side
• Standard Belt: Black PVC 120, Clipper Lacing
• Drive Pulley: 4″ Dia Crown Face Rubber Lagged x 1-3/16″
• Infeed Pulley: 4″ Dia Crown Face Take Up x 1-3/16″
• Frame: 2-3/4″ Deep x 12 Gauge
• Standard Supports: 30″ Elevation Top of Belt
