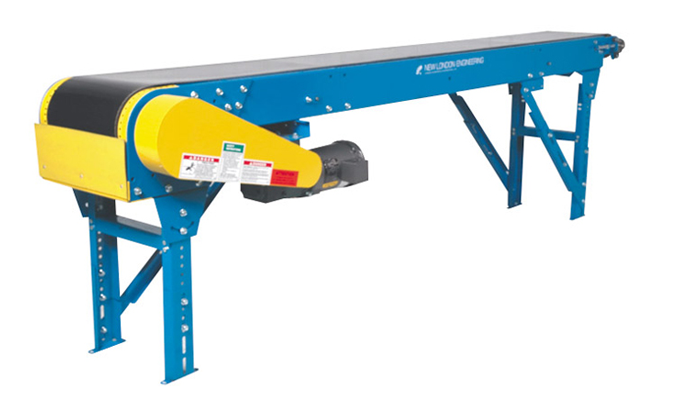

NLE - Model 221 Heavy Duty Slider Bed

New London Engineering's Model 221 is the heavy drive shaft Model 220. This heavy-duty, deep frame slider bed is built for low maintenance and extended use. It is designed for longer, wider, and heavier weight slider bed applications.

Standard Specifications

• Widths: Up to 48″
• Lengths: 5’– 100′ (6″ Increments) Standard Length is 5′, Two Piece Bolt Together
• Standard Speed: 60 FPM
• Standard Motor: 1/2 HP 230/460/3/60 TEFC
• Standard Drive: Bottom Mount, Right Side
• Standard Belt: Black PVC 120, Clipper Lacing
• Drive Pulley: 8″ Dia Crown Face Rubber Lagged x 1-11/16″
• Infeed Pulley: 4″ Dia Crown Face Take Up x 1-7/16″
• Frame: 5-1/2″ Deep x 12 Gauge
• Standard Supports: 30″ Elevation Top of Belt
