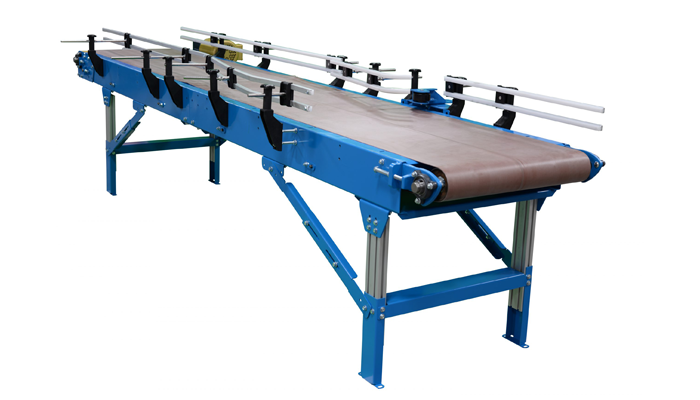

NLE - Model 321 Heavy Duty V-Guided Conveyor

MANUFACTURER: New London Engineering

MANUFACTURER SKU: M321

STOCK STATUS: In-Stock

MORE INFORMATION:

ReQuest Ordering Information

Product Gallery & Description

The New London Engineering Model 321's heavy duty frame and pulleys are grooved/notched to provide a track for the rubber guide that is vulcanized to the underside of the belt. This keeps the belt centered for side loading, long run, and short but wide heavy-duty applications.

Standard Specifications

Widths: Up to 68″ Wide
Lengths: 5’– 100′ (6″ Increments)
Standard Length is 5′, Two Piece Bolt Together
Standard Speed: 60 FPM
Standard Motor: 1/2 HP 230/460/3/60 TEFC
Standard Drive: Bottom Mount, Right Side
Standard Belt: Black PVC 120 with “A” Section, “V-Guide”
Drive Pulley: 8″ Dia Flat Face Rubber Lagged x 1-11/16″ with “A” section, “V-Guide”
Infeed Pulley: 4″ Dia Flat Face Take Up x 1-7/16″ with “A” section, “V-Guide”
Frame: 6-5/8″ Deep x 12 Gauge
Bearings: Grease Sealed
Standard Supports: 30″ Elevation Top of Belt
