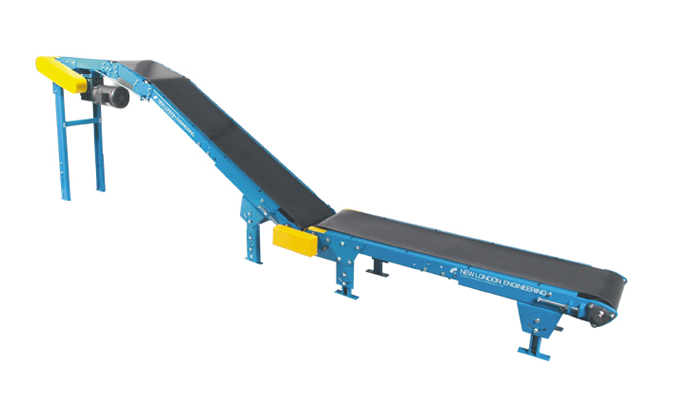

NLE - Model 410 Floor to Floor Medium Duty Conveyor

The New London Engineering Model 410 Floor to floor conveyor is a medium-duty inclined conveyor built for moving narrow and light items up shorter levels. It features a space-saving shallow frame and a double nose-over discharge that provides smooth incline to horizontal transition.

Standard Specifications

• Widths: Up to 30″
• Lengths: 5’– 40′ (6″ Increments)
• Standard Speed: 60 FPM
• Standard Motor: 1/3 HP 230/460/3/60 TEFC
• Standard Drive: Bottom Mount, Right Side
• Standard Belt: Black Rubber Rough Top, Clipper Lacing
• Drive Pulley: 4″ Dia Crown Face Rubber Lagged x 1-3/16″

• Infeed Pulley: 4″ Dia Crown Face Take Up x 1-3/16″
• Frame: 2-3/4″ Deep x 12 Gauge
• Bearings: Grease Sealed
• Standard Supports: 30″ Elevation Top of Belt
• Standard Nose-Over: Adjustable Double Nose-Over
• Power Feeder: Power feeders are optional.
