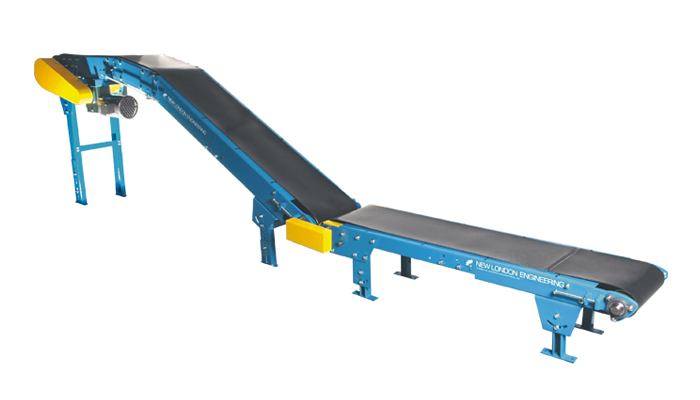

NLE - Model 420 Floor to Floor Heavy Duty Conveyor

The New London Engineering model 420 Floor to Floor heavy-duty inclined conveyor is built for moving large and awkward items from floor to floor. It features a sturdy, heavy-duty frame and a double nose-over discharge that provides a smooth incline to horizontal transition.

Standard Specifications

• Widths: Up to 48″
• Lengths: 5’– 100′ (6″ Increments) Standard Length is 5′, Two Piece Bolt Together
• Standard Speed: 60 FPM
• Standard Motor: 1/2 HP 230/460/3/60 TEFC
  Standard Drive: Bottom Mount, Right Side
• Standard Belt: Black Rubber Rough Top, Clipper Lacing
• Drive Pulley: 8″ Dia Crown Face Rubber Lagged x 1-7/16″
• Infeed Pulley: 4″ Dia Crown Face Take Up x 1-3/16″
• Frame: 5-1/2″ Deep x 12 Gauge
• Bearings: Grease Sealed
• Standard Supports: 30″ Elevation Top of Belt
• Standard Nose-Over: Adjustable Double Nose-Over
• Power Feeder: Power Feeders are Optional
