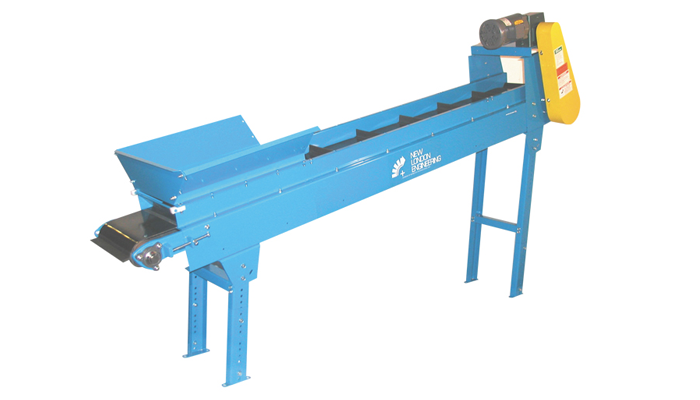

NLE - Model 500 Standard Duty Inclined Conveyor

This lightweight shallow frame conveyor can be used in both horizontal and inclined applications. These units typically convey lighter weight and smaller products like empty plastic bottles or cans, scrap lumber, nuts & bolts, and small stampings.

Standard Specifications

• Widths: 4″ – 30″
• Lengths: Up to 20′ (6″ Increments)
• Standard Length is 4′, Two Piece Bolt Together
• Standard Speed: 60 FPM
• Standard Motor: 1/3 HP 230/460/3/60 TEFC
• Standard Drive: Top Mount, Right Side
• Standard Belt: Black PVC 120 with 1-1/2″ High Cleats on 12′ Centers, Clipper Lacing
• Drive Pulley: 4″ Dia Crown Face Rubber Lagged x 1-3/16″
• Infeed Pulley: 4″ Dia Crown Face Take Up x 1-3/16″
• Frame: 6-5/8″ Deep x 12 Gauge
• Others: Base unit includes 3-1/2″ High Side Rails and a Bottom Pan
• Note: Infeed hoppers and discharge chutes are optional
