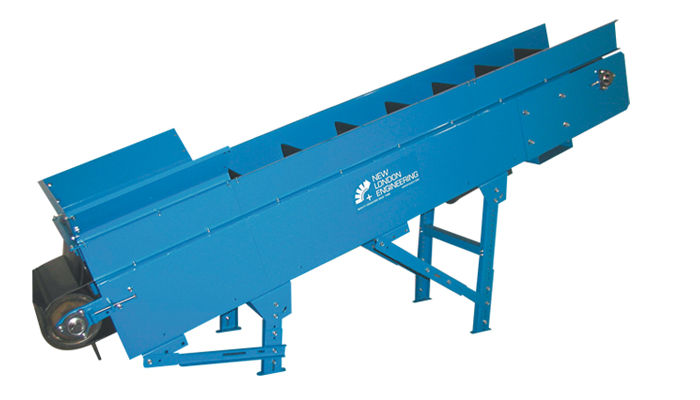

NLE - Model 505 Medium Duty Inclined Conveyor

This unit features a 13″ deep frame, 3″ high cleats, 6″ high side rails, and large drive pulley. It is designed to move larger and heavier products up inclines. This sturdy, solid conveyor is built to last and withstand heavy usage.

Standard Specifications

• Widths: 12″ – 48″
• Lengths: 5’– 25′ (6″ Increments) Standard Length is 5′, Two Piece Bolt Together
• Standard Speed: 60 FPM
• Standard Motor: 3/4 HP 230/460/3/60 TEFC
• Standard Drive: Top Mount, Right Side
• Standard Belt: Black PVC 120 with 3″ high cleats on 12″ centers, Clipper Lacing
• Drive Pulley: 8″ Dia Crown Face Rubber Lagged x 1-7/16″
• Infeed Pulley: 8″ Dia Crown Face Take Up x 1-7/16″
• Frame: 13″ Deep x 10 Gauge
• Bearings: Grease Sealed
• Others: Base unit includes 6″ high side rails and bottom pan
