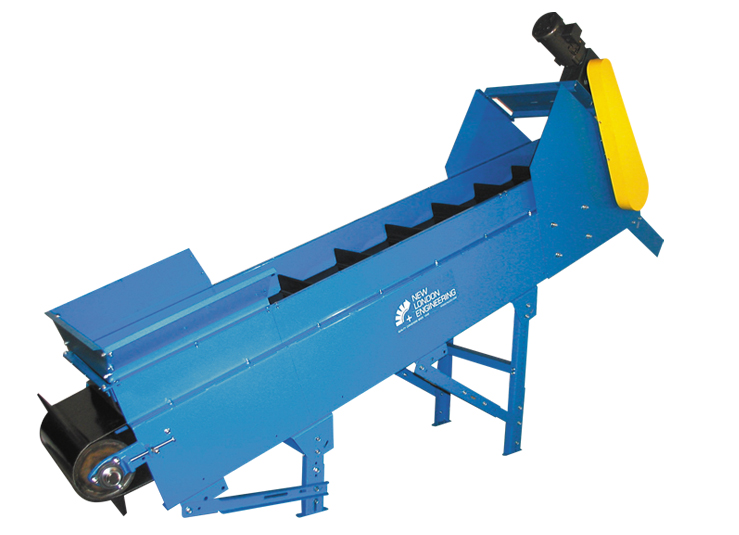

NLE - Model 506 Heavy Duty Inclined Conveyor

Model 506 is the heavy drive shaft version of Model 505. This unit features a 13″ deep frame, 3″ high cleats, 6″ high side rails, and large drive pulley. It is designed to move larger and heavier products up incline and withstand heavy usage.

Standard Specifications

• Widths: 12″ – 48″
• Lengths: 5’– 25′ (6″ Increments)
• Standard Length is 5′, Two Piece Bolt Together
• Standard Speed: 60 FPM
• Standard Motor: 3/4 HP 230/460/3/60 TEFC
• Standard Drive: Top Mount, Right Side
• Standard Belt: Black PVC 120 with 3″ high cleats on 12″ centers, Clipper Lacing
• Drive Pulley: 8″ Dia Crown Face Rubber Lagged x 1-11/16″
• Infeed Pulley: 8″ Dia Crown Face Take Up x 1-7/16″
• Frame: 13″ Deep x 10 Gauge
• Bearings: Grease Sealed
• Others: Base unit includes 6″ high side rails and bottom pan
