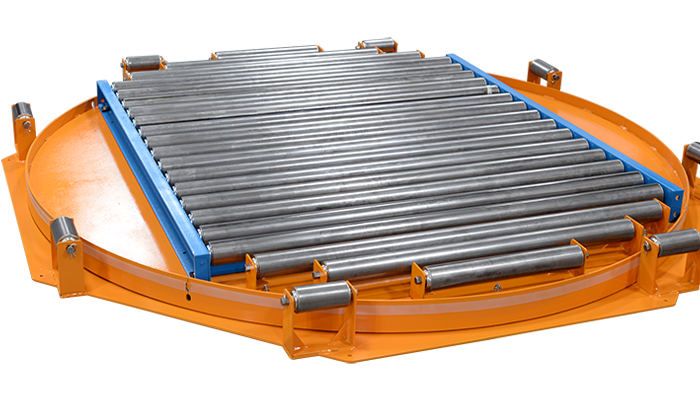

NLE - Model 180 Directional Change Turn Table Conveyor

The New London Engineering Model 180 Directional Change turntable is typically used in sorting applications and systems with a 180-degree turn, these units can turn products in spaces traditional units can’t.

Standard Specifications

• Standard Table Diameters: 3′ to 8′
• Standard Speed: 2.5 Revolutions per Minute
• Standard Motor: 1/2 Hp 230/460/3/60 TEFC
• Standard Drive: Bottom Mounted
• Under Table:Chain Driven Direct Drive
• Standard Siderails: 3-1/2″ Vertical Stationary
• Bearings: Grease Sealed
• Standard Supports: 30″ Elevation Top of Belt
• Standard Frame: 12 Gauge Carbon Steel with a 2″ Edge
• Carrier Platform: 1/4″ Steel Plate Rotates on Heavy Duty Casters
• Infeed: Gravity Roller or Skate Wheel Approaches
