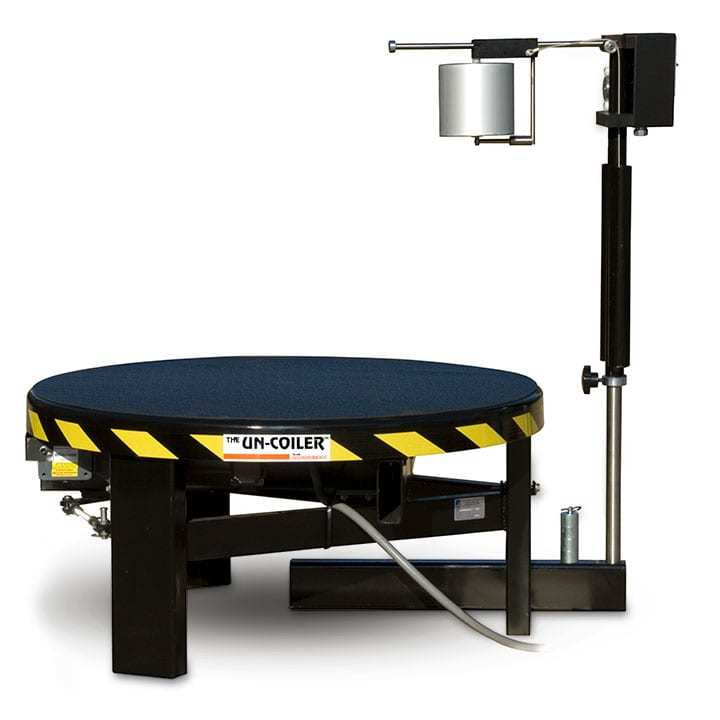

Press Room Equipment’s Norwalk Innovation Pallet Un‑Coilers provide a fast, efficient way to uncoil flat‑stock material directly from palletized coils. Designed for high‑volume operations, these systems dramatically reduce coil‑change downtime and maintain consistent tension for smooth feeding into your press or processing equipment.
Pallet Un‑Coilers are ideal for stampers looking to increase throughput, reduce material handling, and eliminate the delays associated with traditional single‑coil uncoilers.
Once the pallet is loaded, the operator simply guides the first coil around the self‑aligning guide drum and into the feed mechanism — a process that takes about five minutes. As the strip is pulled by downstream equipment, the patented Quick Torque™ drive system automatically synchronizes rotation speed with the machine’s demand.
The farther the guide drum is pulled outward, the faster the turntable rotates, ensuring smooth, responsive payout without overspin or coasting. Tension remains consistent whether the pallet is full or nearly empty.
When the top coil is consumed, the operator repeats the five‑minute threading process on the next coil — eliminating hoisting delays and dramatically reducing changeover time.
Model | Weight Capacity | Table Diameter | Max Coil OD | Stack Height | Speed Range (RPM) | Motor | Power | Unit Weight |
CR124 | 1,000 lbs (450 kg) | 24 in (600 mm) | 28 in (705 mm) | 40 in (1020 mm) | 0–12 | 1/3 hp | 120/240 V | 220 lbs |
CR3542 | 3,500 lbs (1,600 kg) | 42 in (1066 mm) | 48 in (1220 mm) | 40 in (1020 mm) | 0–25 | 1/2 hp | 120/240 V | 390 lbs |
CR5042 | 5,000 lbs (2,250 kg) | 42 in (1066 mm) | 48 in (1220 mm) | 40 in (1020 mm) | 0–12 | 1/2 hp | 120/240 V | 390 lbs |
CR5052 | 5,000 lbs (2,250 kg) | 52 in (1320 mm) | 60 in (1520 mm) | 40 in (1020 mm) | 0–25 | 1 hp | 120/240 V | 650 lbs |
CR7552 | 7,500 lbs (3,400 kg) | 52 in (1320 mm) | 60 in (1520 mm) | 40 in (1020 mm) | 0–12 | 1.5 hp | 240 V | 750 lbs |
CR1052 | 10,000 lbs (4,500 kg) | 52 in (1320 mm) | 60 in (1520 mm) | 40 in (1020 mm) | 0–25 | 2 hp | 240 V | 900 lbs |
PRI partners with Press Room Equipment to deliver rugged, reliable coil‑handling solutions that improve productivity and reduce operating costs. Pallet Un‑Coilers are a proven way to streamline coil changes, maintain consistent material flow, and support continuous production.
