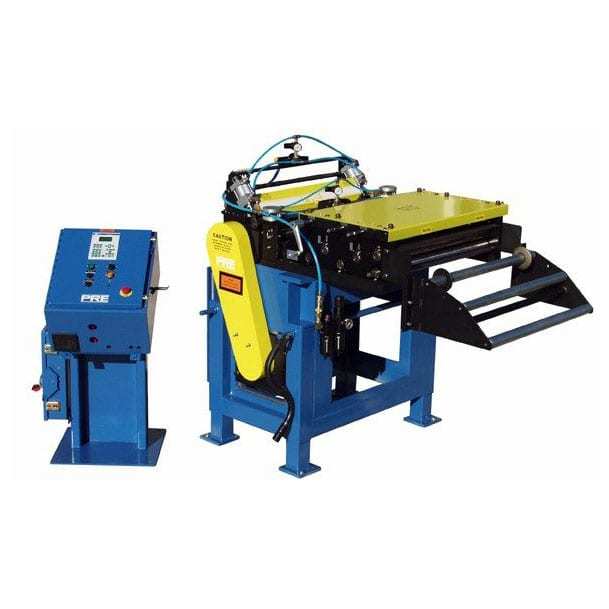

Press Room Equipment's Servo Feeds

High‑Performance, Heavy‑Duty Servo Feed Systems for Modern Press Rooms

PRE Servo Feeds deliver industrial‑grade precision, durability, and control for coil‑fed stamping and fabrication operations. Built for demanding production environments, these feeds combine rugged mechanical construction with advanced servo technology to ensure consistent, accurate material handling at any speed.

Designed for seamless integration with existing press equipment, PRE Servo Feeds offer exceptional flexibility, allowing manufacturers to optimize feed length, speed, and synchronization for maximum throughput and minimal downtime.

Key Features

Industrial‑Strength Construction

• Heavy‑duty, dowel‑pinned and bolted frame for long‑term rigidity
• Helical gear‑driven rolls for smooth, reliable power transmission
• Non‑stretch Kevlar belt for consistent, repeatable feeding

High‑Capacity Performance

• 25 standard models available
• Handles stock thicknesses up to 0.375 in.
• Supports stock widths up to 72 in.
• Available roll diameters: 3.25 in., 4.50 in., and 5.50 in.

Advanced Servo Control

• High‑quality servo drive systems
• Precise feed length and speed control
• Excellent synchronization with press operations
• Ideal for high‑speed, high‑accuracy applications

Optional Enhancements

• Pull‑thru straighteners for improved material flatness
• Custom roll configurations for feeding extrusions, profiles, and specialty shapes

Applications

PRE Servo Feeds are engineered for a wide range of coil‑processing environments, including:

• Progressive die stamping
• High‑speed press operations
• Precision blanking
• Automated coil‑fed production lines
• Fabrication requiring tight tolerances and repeatability

Why Choose PRE Servo Feeds?

PRE equipment is known for rugged construction, long service life, and exceptional value. These servo feeds offer a rare combination of industrial durability, advanced control, and affordable pricing, making them a smart investment for manufacturers looking to optimize coil‑feeding performance without compromising reliability.

Request a Quote

Production Resources Inc. supplies the complete line of Press Room Equipment (PRE) coil handling and feeding systems.
