WireCrafters Supervised Temporary Holding Cells

MANUFACTURER: WireCrafters

MANUFACTURER SKU: Style 840 Wire Partition System
STOCK STATUS: In-Stock

MORE INFORMATION:

PDF icon

Product Gallery & Description

Modular, Secure Enclosures for Temporary Detainee Confinement

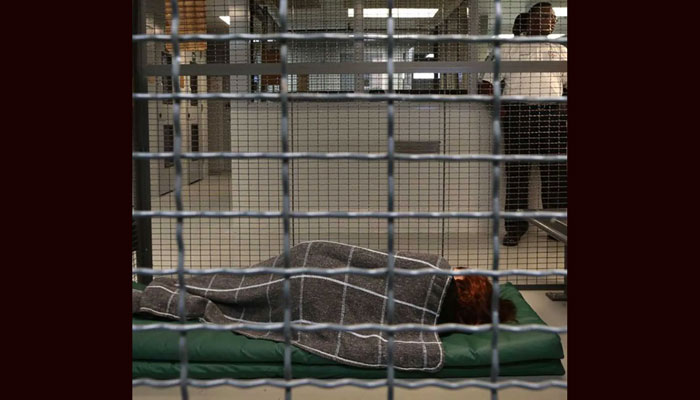

WireCrafters’ Supervised Temporary Holding Cells are modular wire mesh enclosures designed for short-term confinement in correctional and detention facilities. Built using the Style 840 Wire Partition System, these holding cells provide secure, visible containment while allowing full integration with existing lighting, HVAC, and fire suppression systems.

Key Benefits:

  • Tamper-Resistant Design: Hardware is completely inaccessible from the secure side of the enclosure.
  • Rapid Installation: Angle frame design and standard ⅜″ mounting hardware allow fast setup with basic tools.
  • Open-Air Compatibility: Mesh panels support airflow, visibility, and compliance with fire and lighting systems.
  • Heavy-Duty Options Available: Enhanced security features for high-risk environments.
  • Integrated Locking Systems: Includes mortise cylinder locks, dead latches, and optional slide bolts.
  • Optional Benches: Anchorable steel benches with cuff rail options for detainee seating.

Applications:

  • Correctional intake and processing areas
  • Police department holding rooms
  • Courthouse detention zones
  • Temporary confinement in secure government facilities

Customizations & Shipping

  • Panel Materials: Woven wire, expanded metal, sheet metal, or clear polycarbonate
  • Door Types: Hinged, double-hinged, sliding, vertical rise
  • Lock Options: Standard mortise lock, high-security dead latch, slide bolts, or customer-specified locks
  • Bench Options: 4′, 6′, or 8′ lengths; optional cuff rails; corner units available
  • Ceiling Panels: Match wall material; fully enclosed configurations supported
  • Custom Sizes: Panels stackable to full wall height; special dimensions available on request
  • Stock panels ship within 48 hours (U.S. only)

Specifications:

  • Panel Size Widths: 1′–10′ (1′ increments); Heights: 4′ or 5′ (stackable)
  • Mesh Type: 10-gauge wire, 2″ × 1″ rectangular openings
  • Frame Construction: 1¾″ × 1¾″ × ⅛″ steel angle frame
  • Mounting Hardware: ⅜″ bolts; tamper-resistant from secure side
  • Door Options: Hinged, double-hinged, sliding, vertical rise

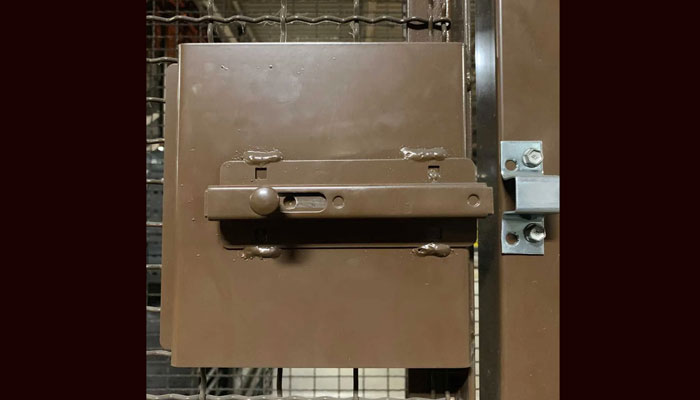

  • Locking Mechanisms: Mortise cylinder lock (standard); dead latch; slide bolts; custom locks

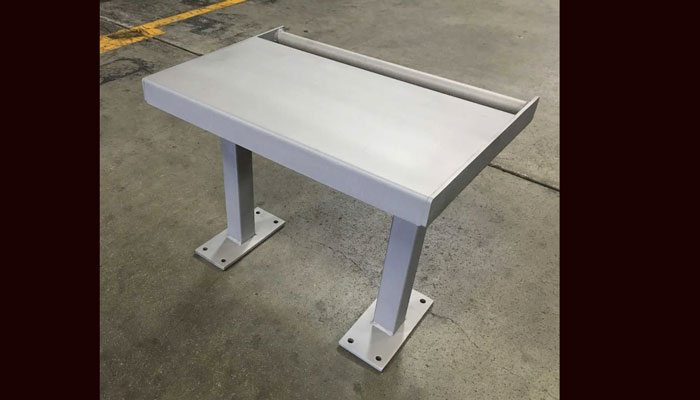

  • Bench Construction: 11-gauge sheet metal seat; welded 2″ × 2″ steel legs; anchorable base plates
  • Ventilation & Safety: Mesh design supports HVAC, lighting, and fire suppression
  • Installation: Quick assembly with standard tools; no cutting or grinding required
