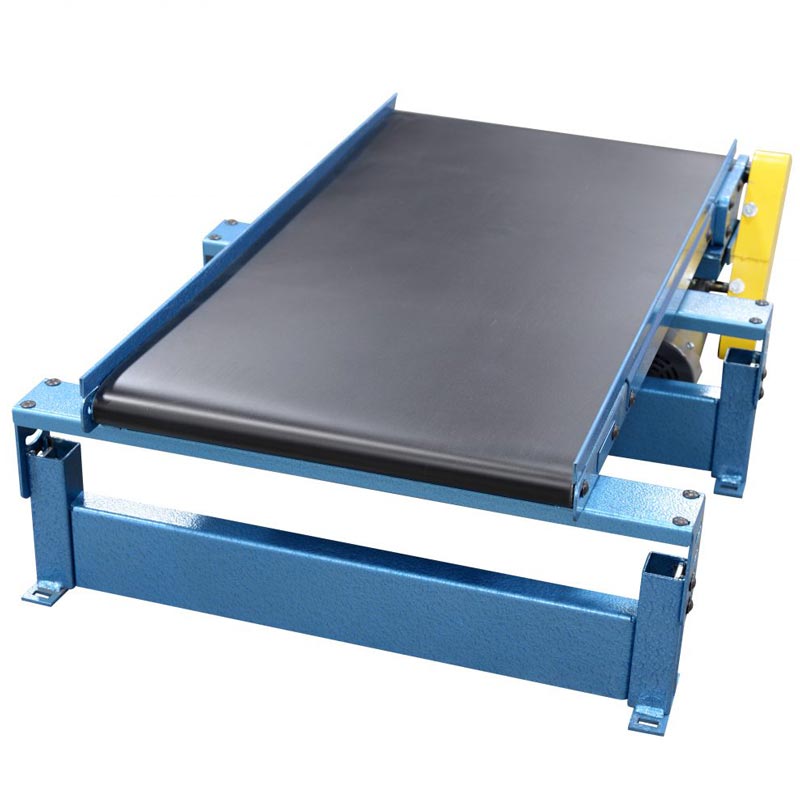

NLE - ToughTrak Model 250 Heavy Duty Low Profile Conveyor

The ToughTrak Model 250 is a heavy-duty, low-profile conveyor can be used when longer runs are required while maintaining narrow widths. The drive and bearing configuration is designed to carry more weight than the Model 150. This model fits a variety of applications where limited space is a factor.

Specifications:

• Belt widths from 2” – 24”
• Lengths 2’ – 20’6”
• Standard Speeds 15-90FPM
• Standard Drive TEFC AC Motor 56C frame and reducer
• Standard Belt 2-Ply Black PVC
• Drive Pulley 2 7/8” Crown Face Knurled x 3/4” Bore
• Infeed Pulley 1 5/16” Flat face x ½” Bore
• Frame 1 ¾” deep x 12 gauge steel
• 2-Bolt Flanged Bearings grease sealed
• Optional Supports
