Wintriss Die Protection Systems

The DiPro 1500 and SmartPAC® 2 die protection systems from Wintriss detect malfunctions such as improper part ejection, misfeeds and material buckling before die damage occurs. If there is a malfunction, the die protection system signals the press to stop.

DiPro 1500 – Stand-alone Die Protection and PLS System

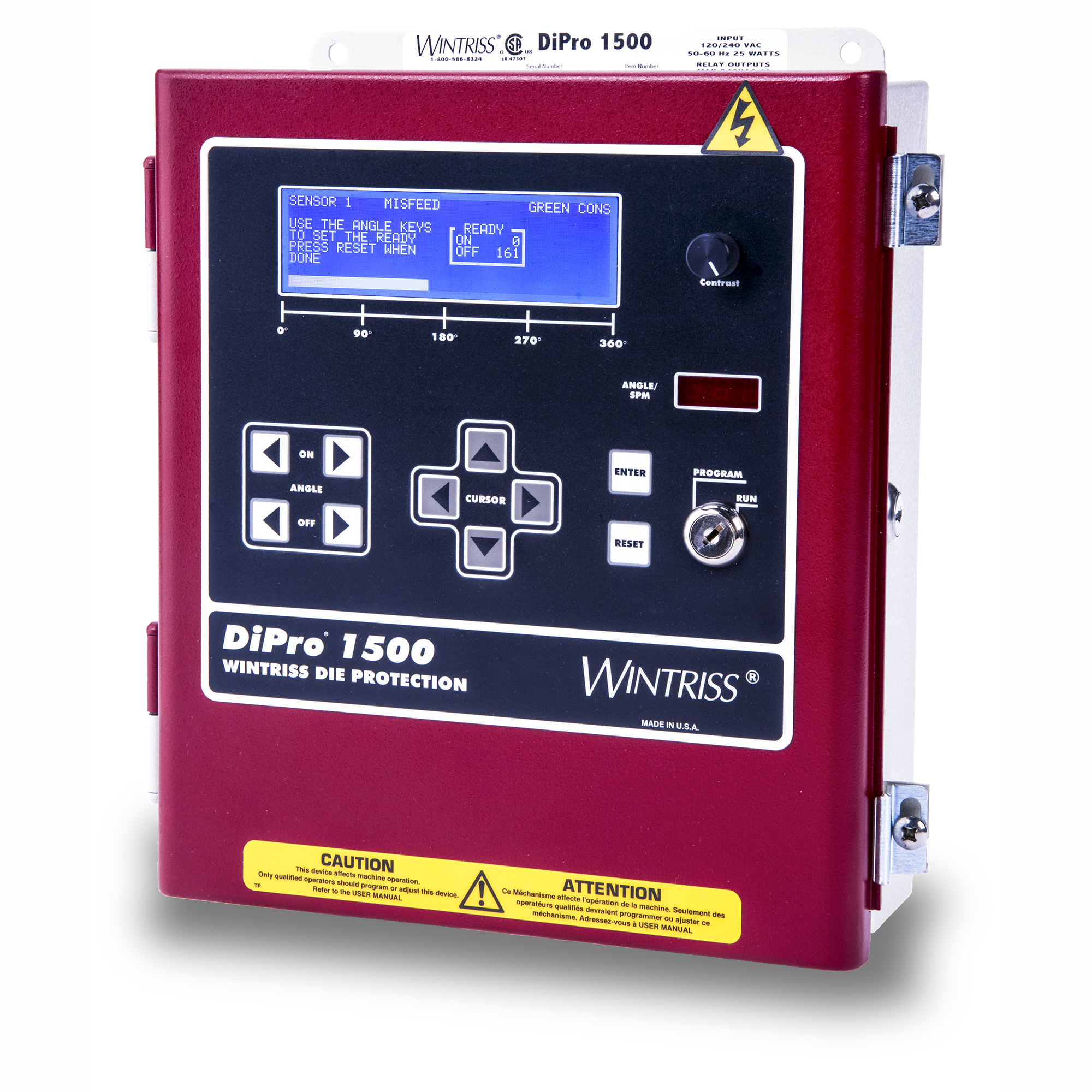

Wintriss DiPro 1500

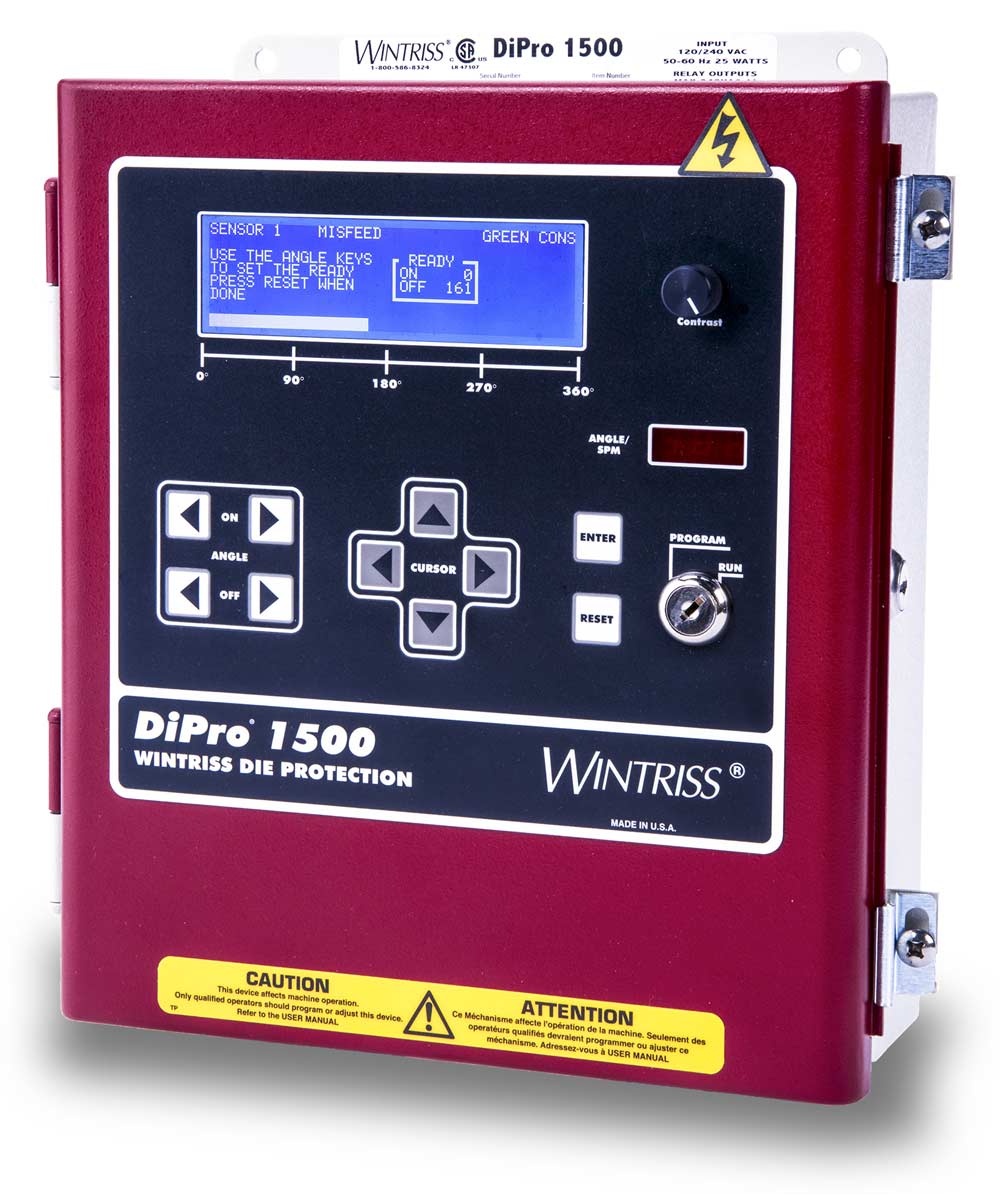

Wintriss DiPro 1500

  • Saves settings for 200 tools
  • 6 programmable sensor inputs
  • Individual "ready" signals for each sensor
  • Allows "on-the-fly" adjustments
  • Sensor actuation signals shown on screen
  • Individual stop selection for each sensor (emergency or top stop)
  • Able to lock settings
  • Naming sensors improve troubleshooting
  • Expanded on-screen error messages
  • Parts, batch and total-hits-on-a-tool counters
  • LED display for press speed and crank angle
  • Optional programmable cam switch with 4 or 8 channels Optional Servofeed Interface (SFI)


The Wintriss SmartPAC 2 offers expanded and enhanced die protection capability and a host of other press automation functions. Visit our SmartPAC 2 page to learn more.
