Electric Shaker Conveyor Systems

Shaker conveyor systems, also known as vibratory conveyors, are mechanical devices used to transport materials in a controlled, horizontal motion. These systems utilize a shaking or vibrating action to move products along a conveyor path, making them ideal for handling bulk materials, parts transfer, and scrap removal.

Shaker conveyors are known for their durability, energy efficiency, and minimal wear parts, which contribute to their long lifespan and low maintenance requirements. They are commonly used in industries such as food processing, manufacturing, and recycling.

PRI carries shaker conveyor systems from PAX and MPI.

Learn more about conveyors on our blog:

• What Is an Automated Conveyor System?
• Benefits of Dorner ERT (Edge Roller Technology) Conveyors
• You'll find additional helpful articles under the Conveyor Systems category on our blog.

PAX Electric ShakerS

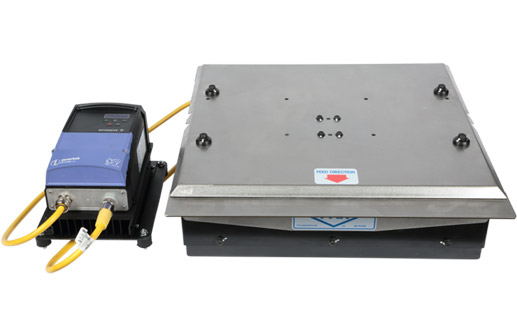

Pax's patented EGD conveyor is an electrically driven, oscillating type conveyor that utilizes a motorized, elliptical gear drive (EGD). Utilizing elliptical gears in a sealed oil bath provides an extremely reliable drive and a high conveying speed at lower RPMs.

The EGD conveyor is currently available in three sizes, rated based on the total tray weight, excluding the weight of the parts and scrap on the trays.

Features

Quick and Easy Tray Attachment

Tray brackets simply snap in place over the round portion of the crossbar without the use of tools. The machined, Acetal brackets bolt to the side of the conveyor tray can rotate on the crossbar if the tray needs to run on a slight angle.

Electrically Driven, Elliptical Geared Drive

The elliptical drive gears are bathed in oil inside of a sealed gearbox. This arrangement minimizes the reverse inertia effects that create issues for many other conveyor designs.

No Air Consumption

The EGD conveyor is electrically driven which means that it does not have the high operating costs and ongoing maintenance issues that are associated with many air-driven conveyors.

PAX EGD-50

Optional, Quick Release Arm Arrangement:

To provide increased access to the press, this quick-release option allows the operator to simply lift the arm, (crossbar), off of the unit and to re-install the arm by simply placing it back on the top of the unit. No tools are required to remove or replace the arm.

T- Slot Type Mounting Brackets:

Bracket bolts to the bottom of the EGD-50 and is arranged to attach to standard T-slots. Standard brackets are based on a vertical mounting surface of 5.25”, (this is the height of the vertical plate on the bracket).

Brackets are available for different T-slot sizes and spacing as shown below, (contact Pax for detailed dimensions of the required bracket).

EGD-050-6190-0: ¾” T-Slots on 6” spacing, bar widths of A = 0.72” and B = 1.38″.

EGD-050-6192-0: ¾” T-Slots on 12” spacing, bar widths of A = 0.72” and B = 1.38”.

EGD-050-6191-0: 1” T-Slots on 6” spacing, bar widths of A = 0.97” and B = 1.50”.

EGD-050-6193-0: 1” T-Slots on 12” spacing, bar widths of A = 0.97” and B = 1.50”.

 Vertical Face Mounting Bracket (PN EGD-050-6194-0):

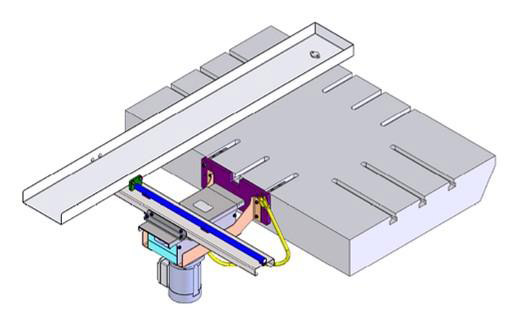

The bracket bolts to the bottom of the EGD-50 and is arranged to be bolted to a vertical surface (such as the face of a bolster plate). Standard brackets are based on a vertical mounting surface of 5.25”, (this is the height of the vertical plate on the bracket). Contact Pax for detailed dimensions.

Option of Utilizing an Extruded Aluminum Cross Bar in Place of Pax’s Standard Cross Bar:

For customers with standardized extruded aluminum-type cross bars, an extruded aluminum bar can be attached directly to the top plate on the EGD-50. To attach the extruded aluminum bar, four ¼” bolts can be inserted through existing holes in the top plate and connected to T-nuts that can be inserted into the extruded aluminum bar. Top plate is designed for a 1.5” x 3” extrusion that has a 1.5” spacing between T-slots and a T-slot opening of 0.32”.

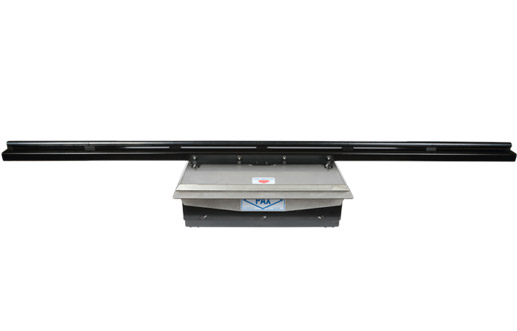

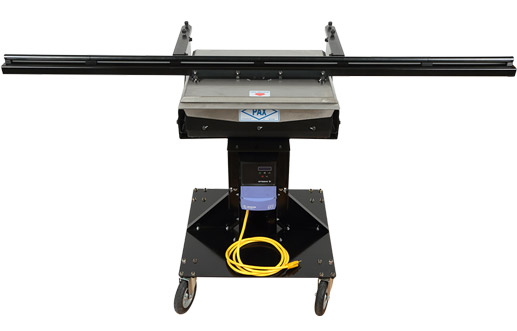

PAX EGD-125

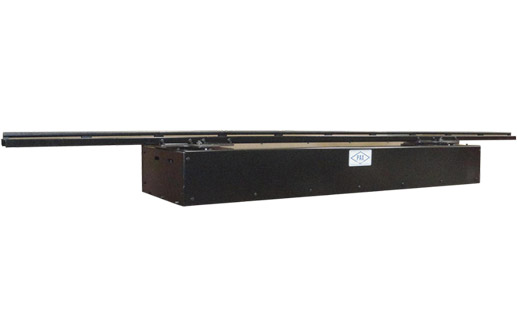

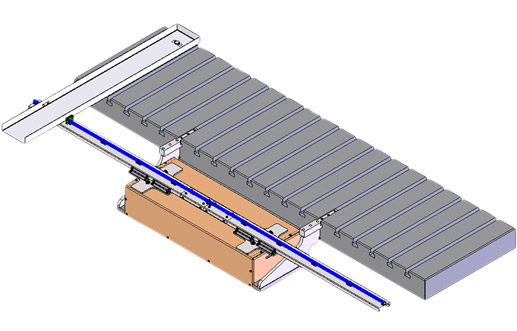

PAX EGD-250

MPI Electric Shaker Conveyors

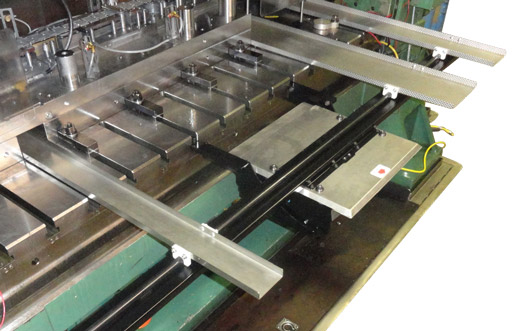

MPI shakers are specifically designed for slug and part removal on mechanical power presses where a single tray or multiple trays are located under the stamping die between parallels. A number of electric and pneumatic models with various capacities are available including floor mounted high capacity shaker conveyors.

Patented MPI Shaker in Action

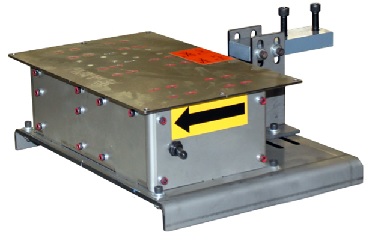

MPI M-10 Electric Scrap Shaker Conveyor

MPI’s patented M-10 18” Maximum Crossbar Electric Shaker takes shaker technology to an entirely new level. With simplicity and affordability in mind, this machine is designed to operate without the need for maintenance, air or lubrication.

Sized for small presses, the M-10 Motor features an AC brushless motor and runs from a standard 110V outlet. The system runs at a fixed speed (factory preset at the optimal setting). Items that can be tampered with and may slow production, such as buttons, dials or switches, have been eliminated.

M-10 Features

• quiet
• boasts compact footprint
• no compressed air required
• simple on/off power switch/breaker
• excellent convey speeds
• minimum electricity costs; operates on pennies a day
• no spare parts required
• never needs maintenance
• runs on 110V standard three-prong plug

M-10 Specifications

• System Unit Measurements: 4” H x 13” W x 8.38” D

Available  Options

• Scrap Shaker Trays or Scrap Shaker Pans
• Quick Release Pan Mount Bracket Accessory (QRPMB)
• Wear Pad Kits

Download the MPI M-10 Linear Shaker PDF for full Specifications

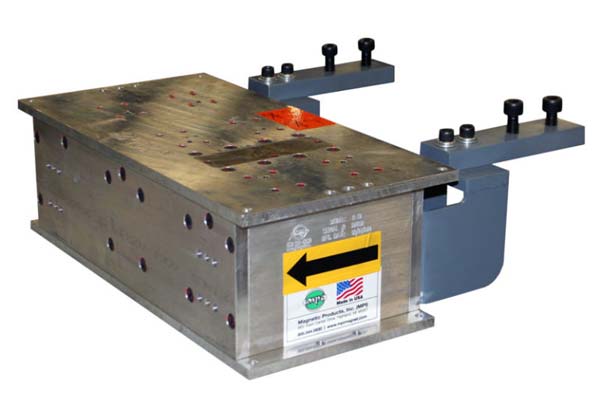

M-50 Maximum Crossbar Electric Shaker

Press Mounted Multi Pan System Electric Shaker Conveyor

The most efficient electric shaker on the market, MPI's Patented M-50 36” Maximum Crossbar Electric Shaker is more efficient than air!

Sized for small presses, the M-50 features an AC brushless motor and runs from a standard 110V outlet.  Designed designed to operate without the need for maintenance, air or lubrication, the M-50 is the first shaker that leaves the factory floor ready to fit virtually all of your press bed T-slot configurations, whether metric or standard.

The system runs at a fixed speed (factory preset at the optimal setting). Items that can be tampered with and may slow production, such as buttons, dials or switches, have been eliminated.

M-50 Features

• The Most Reliable Solution to Stay Up and Running: MPI patented electric shakers are the most reliable scrap removal conveyor available. They deliver years of dependable service and have a modular design, so if something does go wrong, you can get back up and running quickly.
• Easy Installation and Quick-Changeover:
  • Plug and play design slides into a into 2 t-slots on the press, locks down by tightening a bolt and plug into a standard 110V plug. The unit is light enough to carry to by hand if needed.
  • Optional Quick-Release Pan Mount Brackets make it easy to add, remove and slide pans on the extrusion when setting up for a new die.
• Extremely Efficient: A compact electric motor drives the scrap conveyor. Compared to previously used pneumatic designs,
  the electric design can reduce operating costs by 71%.
• Heavy-Duty 7-Gauge Carbon Steel Construction: The press room can be an abusive environment for equipment. Our electric scrap shakers are built with heavy duty 1” thick aluminum billet construction that is lightweight for the drive, but strong enough to stand up to anything in the press room, except a die being dropped on it.
• Easy to Reverse Direction of Travel: The scrap shaker can easily reverse direction of travel for the scrap by unmounting, turning 180 degrees and remounting.
• Quiet Operation: Noise compounds in the press room, and you do not need your scrap system adding to the overall
  noise. The electric shaker runs almost silently, allowing operators to focus on their work.
• No Air or Lubrication Required: The electric drive saves on maintenance and compressor operating costs when compared to pneumatic design.
• Simple On/Off Switch to Operate: The scrap shaker features a simple on/off switch located on the side of the unit to turn it on and off.
• MPI's Excellent Service and Support: MPI understands that if these systems are not
  running, you cannot run your press. Should the unexpected occur, MPI has spare units on the shelf, a repair program and a 24/7 number so you can know you can reach them even if it is 2am on a Sunday.

M-50 Electric Shaker Conveyor Specifications

Available  Options

• Scrap Shaker Trays or Scrap Shaker Pans
• Quick Release Pan Mount Bracket Accessory (QRPMB)
• Wear Pad Kits

Download the MPI M-50 36 Max Crossbar PDF for full specifications

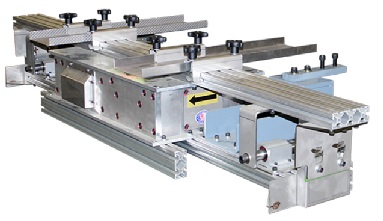

MPI M-200 Rack and Pinion System 168” Maximum Crossbar Electric Shaker

The patented heavy-duty M-200 Electric Scrap Shaker Conveyor uses a standard 110V, three-prong AC electrically driven motor.

Sized for large presses, its quiet operation and maintenance-free reliability make the M-200 the most versatile and affordable part transferring machine on the market.

With a 200 lb. tray capacity, up to 20 FPM part movement speed, a simple on-off reset breaker, and accessibility to tie into your press controls for automatic startup and shut down, the M-200 is the only part transfer unit you’ll ever need.

M-200 Features

• Exclusive Rack & Pinion Design: Most large electric scrap shakers fail because they cannot handle the uneven pan loads, which are
  required for stamping applications. MPI’s exclusive rack and pinion design delivers an even load to the drive no matter how lopsided your pan setup needs to be for your die. This results in years of reliable service without downtime, even on the largest press applications. (Note: for any press applications over 168” wide, MPI will supply two evenly sized systems that cover the width required.)
• Easy Installation: Plug and play design slides into 2 or 4 t-slots on the press, locks down by tightening a bolt and plug into a standard 110V plug.
• Optional Cart for Quick Changeover: An optional cart with casters and adjustable height enable to system to be easily moved around the pressroom and adapt to different die heights.
• Quick-Release Pan Mount Brackets: Optional Quick-Release Pan Mount Brackets make it easy to add, remove and slide pans on the extrusion when setting up for a new die.
• Extremely Efficient: A compact electric motor drives the scrap conveyor. Compared to previously used pneumatic designs, the electric design can reduce operating costs by 71%.
• Heavy-Duty Billet Aluminum Construction: The press room can be an abusive environment for equipment. Our electric scrap shakers are built with heavy duty 1” thick aluminum billet construction that is lightweight for the drive, but strong enough to stand up to anything in the press room, except a die being dropped on it.
• Easy to Reverse Direction of Travel: The scrap shaker can easily reverse direction of travel for the scrap by unmounting, turning 180 degrees and remounting.
• Quiet Operation
• No Air or Lubrication Required: The electric drive saves on maintenance and compressor operating costs when compared to pneumatic design.
• Simple On/Off Switch to Operate

M-200 Rack and Pinion Electric Shaker Specifications

Available  Options

• Scrap Shaker Trays or Scrap Shaker Pans
• Quick Release Pan Mount Bracket Accessory (QRPMB)
• Wear Pad Kits
• Carts

Download the MPI M-200 Rack and Pinion Electric Shaker PDF for full specifications

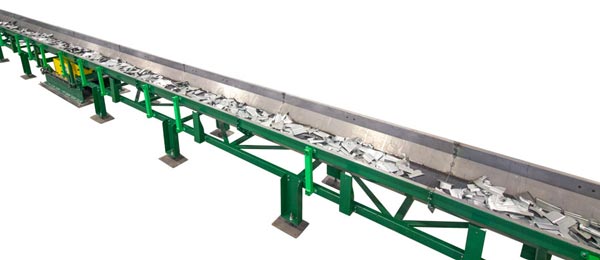

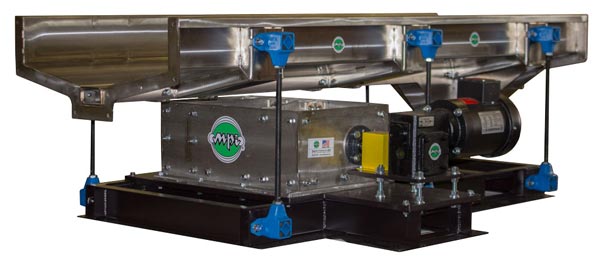

MPI M-M10000 Electric Shaker Conveyor

M-10000 is a complete central scrap removal system custom designed for your plant operations.

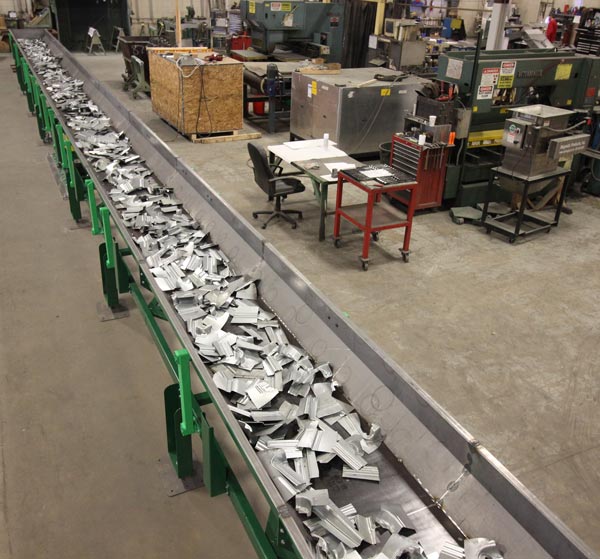

MPI’s M-10000 Series High-Capacity Floor Mounted Electric Shaker Conveyor (US Patented) is designed to transfer scrap metal, bulk products, or bulk materials reliably over long horizontal distances. The horizontal motion conveyor is designed to transfer at rates of over 10,000 pounds per hour and distances of hundreds of feet. The shaker conveyor features a formed steel pan that is driven by a single drive at a smooth, low frequency to convey materials in a horizontal motion.

Rugged enough to be used in applications for scrap conveyors, including scrap removal conveyors, press scrap conveyors, and scrap removal systems, the system reliably transfers the most destructive materials (i.e., scrap metal, castings, and rocks). However, the shaker conveyor's movement is gentle enough in their movement to transfer potato chips, nuts, or biscuits without breaking them.

The M-10000 Series is often integrated as part of a complete turnkey system that includes other components, such as incline conveyors, other horizontal motion conveyors, and controls. In the stamping industry, these make up one component of an underground scrap system or central scrap handling system used to collect and transfer scrap metal from stamping presses.

M-10000 Features:

• Reliable Maintenance Free Conveyance
  • Low frequency, smooth horizontal motion conveyor single pan systems reliably transfer scrap or parts in a horizontal motion.
  • Metal on metal contact points are eliminated with maintenance free, Rubber Suspension Technology (RST) bearings  Supporting the pan and connecting the drive. RST bearings require no grease or maintenance.
  • Uniform pans contain scrap or parts and reliably transfer them from conveyor to conveyor.
• Indestructible Pans
  • Steel pans are more rigid and take less damage from scrap or parts compared to other conveyor designs
  • Jams caused by scrap or parts are eliminated because pans are formed from a single sheet of steel, creating a uniform surface for the length of the conveyor
  • If damaged, pans can typically be repaired or replaced in-house,reducing the need for outside vendors to help get equipment back up and running.
• Flexible, Modular Design
  • Flexible configurations and options allow users to optimize and configure the system for their application.
  • The pans, drive, and pan supports are modular to scale up and down for each application and easy to replace should damage occur, maximizing uptime.
• Safer Operation
  • Pinch points are eliminated with the single pan design and the short stroke of the drive makes the system safer to work around compared to other conveyor designs.
• High ROI
  • Lower maintenance costs and higher uptime deliver a quick return on your investment.
• Turnkey Support
  • MPI's team has the expertise to support each major step of the integration process, including onsite assessments, drawing review, component integration, scheduling for installation, installation supervision, and installation.

M-10000 Shaker Conveyor in Action

Download the MPI M-1000 Linear Shaker PDF for full Specifications

Additional Resources

Download MPI's guide to keeping your Scrap Shaker Conveyors Running in peak condition

  Read Metal Stamping and Scrap Handling's article on MPI’s shaker conveyors.
